CNC Machined Turbocharger Components: Precision Engineering for Performance

Turbochargers have re-invented the game of engine power in land vehicles and industrial applications through gigantic increments of added power in engines. Timing of a turbocharger is crucial to making the component work effectively, and it has to endure extreme speeds and temperatures of operation.

Turbocharger Parts – The Role of CNC Machining. The manufacturing process of turbocharger components heavily relies on CNC (Computer Numerical Control) machining, which ensures optimal precision, strength, and efficiency of those components. This article talks about CNC Machining for Turbocharger Production its main parts and its uses.

The Role of CNC Machining in Turbocharger Manufacturing

CNC machining is a   manufacturing process that utilizes computer controls to produce shapes in metal or composite materials. And since turbocharger components play a crucial role in increasing engine efficiency and lowering emissions, precision is critical. CNC Machining allows manufacturers to develop complex, tight-tolerance components for increased turbocharger performance and durability.

Key Turbocharger Parts Designed with CNC Machining

Turbochargers are made up of several key components, all of which need to be machined accurately to make sure they perform to standard. CNC Machined Parts That Are Most Essential are:

l Compressor Wheel

A turbo consists of a compressor wheel for spinning air at high speeds through an intake into the combustion chamber; a turbine to extract energy from the exhaust; and the bearings to keep all of this spinning properly. They also use precision CNC machining to perfectly balance and streamline the compressor wheel, allowing for efficient air compression and reducing turbo lag.

l Turbine Wheel

Exhaust gases spin the turbine wheel, which transfers that energy to the compressor wheel. Turbine wheels are generally built of high-temperature alloys like Inconel, and precision CNC machined to be as aerodynamically efficient, particularly if the stock turbo vortices, well-matched to the respective engine, are to provide good life with thermal load.

l Bearing Housing

It’s an interface between the bearing and the rotating assembly, responsible for reducing friction and heat generation. By using CNC, Miller said, the tolerances and surface finish will be tighter for efficient lubrication and longevity of the turbocharger.

l Rotating Assembly Center Housing (CHRA)

CHRA stands for the assembly that has the bearings, seals, and the shaft connecting turbine and compressor wheels. With CNC machining, the precision and smooth rotation and low friction and proper oil flow through the assembly is guaranteed.

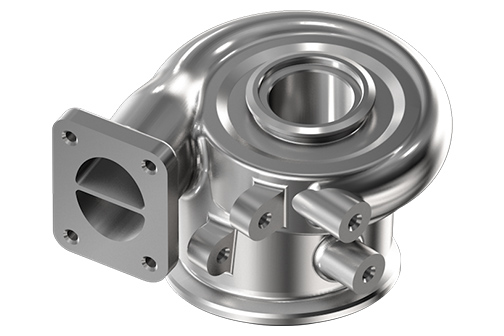

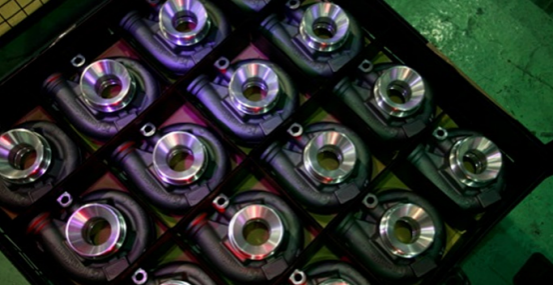

l Compressor and Turbine Cases

These housings do hold the compressor and turbine wheels, altering airflow to run through the ducting in a smooth manner. CNC machining offers tight torques, correct dimensions, and smooth internal surfaces to enhance aerodynamics and performance.

l Shaft and Journal Bearings

The turbocharger shaft transmits the rotational energy between the turbine and compressor wheels. The CNC machined ensures that the shaft is well balanced and perfectly aligned should reduce the vibration inside of the bearings effectively centered to allow for turbo purpose as best as possible. The news bits about the journal bearings, which are critical for limiting wear on gears, are also machined to the micron for strength.

Advantages of CNC Machining Turbocharger Components

Benefits of Using CNC Machining for Turbocharger Manufacturing are:

l High Precision and Accuracy

Micron-level precision provided by CNC machining is essential for the stability and effectiveness of high-speed turbocharger assemblies.

l Material Versatility

Parts are typically forged from high-performance materials, including aluminum, titanium, stainless steels, and Inconel. CNC machining can be used to manufacture such challenging workpieces without compromising on precision or surface integrity.

l Rugged & Reliable with Repeatable Performance

Robo-CNC procedures allow for detailed quality control across high volume processes and ensures that every single component meets your high specifications.

l Increased Lifetime and Enhanced Performance

With this being a CNC machining job, rather than optimizing the designs for airflow and heat containment alone like a lot of turbo designs tend to do, those designs could also be further optimized to provide better overall turbocharger efficiency and longevity.

l Efficient Production and Cost-Effective

The initial purchase price for CNC machining can be high, however the automation and rapid precision of CNC machining greatly reduces material waste, resulting in lower overall manufacturing costs over the long term.

Challenges posed in the machining of turbocharger components using CNC.

Although CNC machining of turbocharger components provides several advantages, it also poses its own set of challenges:

l Complex Geometries

Efficiency Due to Complexity: Components of turbochargers are complex in nature owing to which, these components require multi-axis machining capabilities. You need sophisticated software and skilled operators to produce such elements correctly.

l Machining of Ultra-High-Temperature Materials

Metals like inconel and titanium, which are famously strong and heat-resistant, have to be machined from larger blocks, making metal more labor-intensive than plastic. To achieve the required tool life and cutting speeds, special tools, coatings, and cooling methods are required.

l Additional tolerances and settlement.

A turbocharger's components have to be perfectly balanced, otherwise, they'll shake themselves apart and lead to performance loss. Achieving these tolerances requires the use of high-precision CNC machines, usually supplemented with real-time monitoring and quality control systems.

Future of CNC Machining Turbocharger Technology

With the advancements made by multi-axis cnc machining, additive manufacturing, AI driven precision control, it is reasonable to expect turbocharger (and turbine) manufacturers to produce units that meet this need even better. This is why manufacturers employ hybrid machining techniques which use the precision of CNC with the freedom of 3D printing to maximize their components for weight, strength and airflow characteristics.

In addition, sensor-embedded fully-automated quality control systems are specifically built for CNC machining that leverage AI-based analytics to continuously monitor and detect deviations in real-time, ensuring greater consistency and dramatically reducing the defect rate.

Having advanced coatings on turbocharger components to enhance durability and reduce friction is one such exhilarating example. CNC machining techniques are evolving to perfectly incorporate these coatings without compromising dimensional integrity.

Conclusion

Like turbocharger components, CNC machining is driving the precision, performance, and longevity of vehicular elements like never before. By leveraging advanced machining processes, manufacturers can continue to improve device technology, offering resilient, long-lasting and efficient solutions to both today and tomorrow’s ICEs.

As industries increasingly transition to sustainable and high-performance technologies, calling all industries to action, the future trajectory of turbochargers will be shaped around CNC machining, a hallmark of optimal performance: efficiency, reliability, and cost-effectiveness. Automation, artificial intelligence and hybrid manufacturing will drive even more evolution for CNC machining in solidifying the next-generation turbocharger's place in the mix for both today's and tomorrow's automotive and industrial applications.
