Silicone Molding: A Comprehensive Guide

Silicone Molding: A Comprehensive Guide

Silicone molding is the most unique method of manufacturing products. Different industries apply the process of mass production or as a single instance of making accurate parts and items. Prototypes of mass manufacturing and silicone molding have brought changes in product production concerning flexibility, toughness, and reduced cost.

This article will cover what silicone molding is, its uses and advantages, and step-by-step procedures followed in producing top-quality silicone molds.

What is silicone molding?

Silicon molding refers to a process wherein one can shape up any form or shape of a silicon material or liquid silicon rubber, popularly known as LSR. That's just injecting the liquid silicon in the cavity which then takes form at the final stages after some setting. Properties of silicon involve resistance to very high heat; and flexibility; along with being biocompatible and will ensure the produced material for the process is compatible for use within a car, medical, or aerospace product or in consumer applications.

Types of Silicone Molding Processes

Silicone molding is usually performed by taking into consideration how complex, and the size along with the requirements of the specific application. Major techniques include:

· Compression Molding

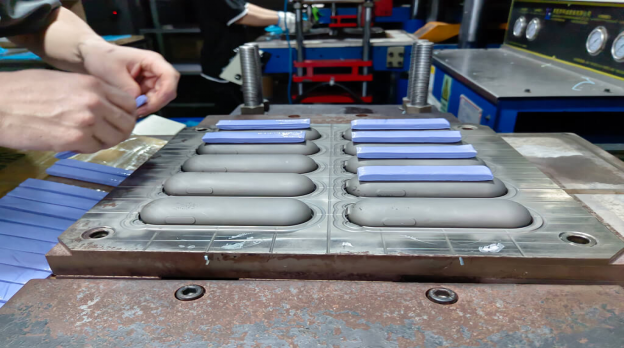

Compression molding takes a measured amount of silicone material and places it in a mold cavity with heat. The Mold closes compressing the material and spreading it to fill the cavity. The finished product is removed after curing. This technique is versatile when manufacturing thick-walled or simple parts.

· Injection Molding

In this process, after the preheated mold cavity is injected under high pressure, liquid silicone rubber is used. Transfer molding is very efficient in the rapid production of complex designs with minimal waste.

· Transfer Molding

Transfer molding involves placing the silicone in a pot or chamber that is transferred to the mold cavity using a plunger. It's most appropriate for designs of medium complexity up to high, and this is ideal with very few defects.

· Cast Molding

Cast molding is an operation whereby liquid silicone is cast in an open mold, which after curing can either be at room temperature or in controlled conditions. It's ideal for low-volume productions or prototyping.

Silicone Molding Applications

Silicone molding has been highly in many industries most of which have some of its flexibility and superior properties.

· Medical and Healthcare

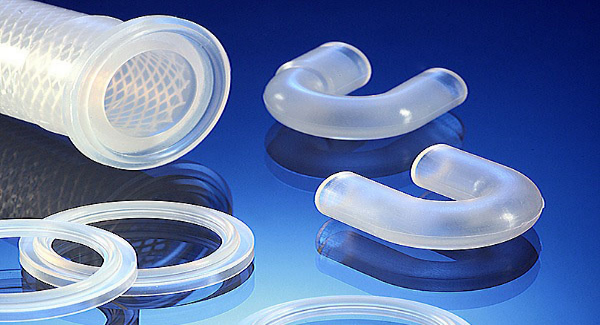

Silicone molding is several times used in the manufacturing of medical-grade devices, implants, and parts like catheters, seals, and gaskets. It's biocompatible and hypoallergenic and thus can be safely used for a long time in medical applications.

· Automotive

Manufacturing gaskets, seals, and vibration dampers come into the automobile sphere where the field of silicone moulding comes to play. Moreover, extreme temperatures and chemicals would be extremely aggressive environments and quite tough and reliable.

· Consumer Goods

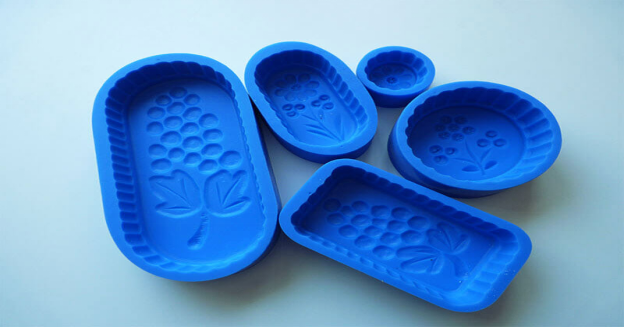

Most products within the kitchen utensils and wearable products are silicone molding, ranging from baking trays, phone cases, and wristbands. As it bends and is visually attractive, it is highly used.

· Electronics

Silicone molding encases electronic components for the addition of insulation and the prevention of moisture and contaminants leading to such applications as cable assemblies, connectors, and seals.

· Aerospace

This would see to it that aerospace engineers come with elements that are weight-and heat-tempered with a view towards their safety while under high-strung conditions likely to arise within the process itself.

Key Benefits of Silicone Molding

Silicone molding has remained highly flexible; all applications would feature this kind of technique. Included in its list of advantages, therefore is

· Flexible Design Options

Silicone can capture high-resolution details with the definition of complicated designs in a way that it makes the designers come up with complex geometries.

· Sustainability

Silicone molds are resistant to UV light, and variation in temperature and humidity, which ensures extended performance.

· Biocompatibility

Silicone for medical use is nontoxic and hypoallergic, hence can be used on humans, which is critical in medical application-related areas.

· Cost-Effectiveness

Silicone molding is economical in production as there is minimal material wastage besides fast prototyping and high-volume manufacturing.

· Thermal and Chemical Resistance

Silicone is resistant to both high and low temperatures besides being resistant to oils, solvents, and chemicals. Silicone molding is therefore applicable to demanding environments.

Steps involved in Silicone Molding

Silicone molding is described by the following steps:

· Mold Design

The process starts by developing a mold through specifications about the product to be developed. In the above task, it's developed and finally perfected for obtaining accuracy as well as functioning correctly through the software CAD.

· Selection of Material

A suitable material like Silicone is used here for processing purposes. Parameters associated here are Hardness, tensile, and elongation

· Mold Manufacturing

This molded object has an exact copy created from the design as manufactured in highly accurate machine technologies.

· Silicone Preparation

Silicone is prepared by mixing its base material with the curing agent or catalyst. It may contain additives like pigments, fillers, etc, to obtain certain properties.

· Molding

The final shape is obtained by filling prepared silicone in a mold cavity either by pouring or injection.

· Curing

Silicone cures at room temperature or on heating where the silicone turns to be rigid and acquires strength. The curing time varies with the type of silicone and the complexity of the design.

· Demoulding and Finishing

The product is then taken out of the mold when the material is cured. Finally, several post-processing steps may be applied to the product for cutting, grinding, or applying a protective or mask layer.

Challenges of Silicone Molding

Silicone molding is not free of challenges and problems, which manufacturers have to deal with:

· Material Costs: Good quality silicon material is costlier. As a result, production costs rise accordingly.

· Wear and Tear in Molds: Molds, if used many times, will wear off. Consequently, molds require repair or replacement.

· Mass Production Complexity: Getting accuracy and uniformity in mass production is extremely hard and needs high-end machines along with skilled technicians.

Eco-Friendliness in Silicone Molding

Because of the ever-growing concern for the environment, the silicone molding industry is welcoming this eco-friendliness also:

· Scrap Recycling: Scraps can be reused for by-product manufacture as scrap gets produced during the process of manufacture.

· Eco-Friendly Options: Bio-based silicones, water-soluble molding agents, and similar innovations are currently available in the market.

· Energy Efficiency: Installation of energy-efficient curing technologies at manufacturing companies, to decrease carbon footprints.

Emerging Future of Silicone Molding

Future trends in the silicone molding sector: Innovation is being incorporated with material and technological development.

· Silicone 3D Printing

Development of rapid routes for prototyping, which reduces leads to fewer than three.

· Smart Materials

Self-healing, and conductivity- these properties and others define intelligent silicones.

· Automation

With a tremendous saving in labor, higher precision, and better productivity can now be achieved through automated molding machines.

Conclusion

The core of modern manufacturing lies in the silicone molding. Among its attributes include flexibility, reliability, and efficiency, which could make it the most viable for life-saving medical devices as well as the toughest parts of the automobile industry. The silicone molding industry will break more barriers to create an innovative future that will provide all sectors with quality custom products by embracing the wave of technological advancement and sustainability.
