3D Printing vs Traditional Prototyping: Which Is Right for Your Project?

3D Printing vs Traditional Prototyping: Which Is Right for Your Project?

The prototyping stage is a key step in the product development lifecycle. It allows firms to explore concepts, finalize designs and reconcile functionality before going into mass production. Currently, there are countless methods available to OEMs looking to prototype their ideas as fast as possible — perhaps even a few that are less known than others — although two of the most well-known processes are traditional prototyping and additive manufacturing processes (the latter known for its 3D printing methods). They each come with their pros and cons, but which is a better fit for your project?

In this article we’ll compare both to understand their distinction, advantages, and challenges to help you choose a prototyping method for your product development project.

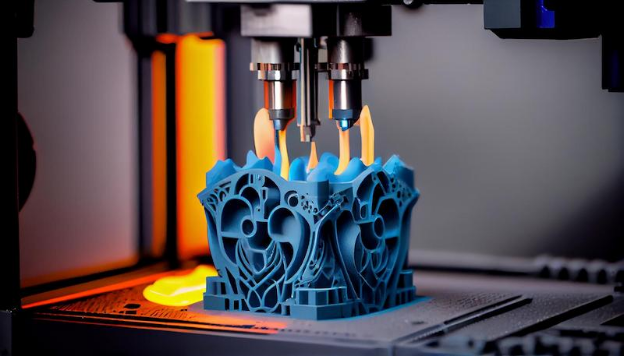

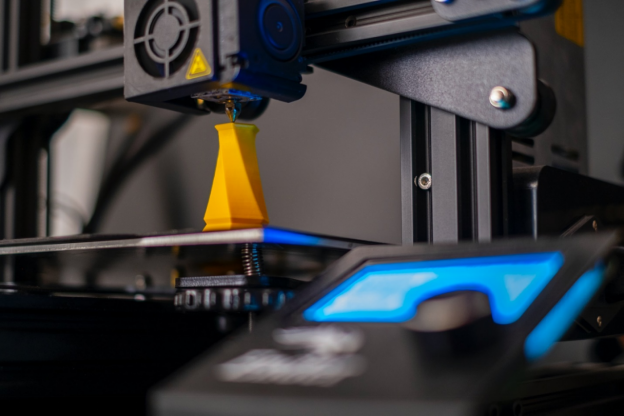

What is 3D Printing?

Digital fabrication, or the construction of a three-dimensional object layer by layer, is, in fact, additive manufacturing, or 3D printing. It begins with a digital 3D model that a computer program “slices” into thin layers. The layers are then built up with the addition of the material, whether plastic or metal for example, until the object is created from the bottom up. So 3D printing has become a common platform for prototyping in the past years, because it is fast, cheap and can create complex shapes.

What is Traditional Prototyping?

Some of the traditional prototyping methods have been used for decades to create physical models, (CNC machining, injection molding and sheet metal fabrication). These are subtractive methods: some material is subtracted from a block to extract the desired shape. In conventional prototyping, industrialists usually begin with a solid block of a given raw material — such as plastic, metal, or something else entirely — and drill and chisel (or mold it) down to the final shape. Conventional techniques are accurate and proven over time but can be more expensive and time-consuming than contemporary ones such as 3D printing.

Pros and Cons of 3D Printing vs Traditional Prototyping

Speed and Lead Time:

On the other hand, speed is where 3D printing reigns supreme. The manufacturing process entails complexities, and thus traditional prototypes take longer time. CNC machining, for instance, can involve long setups, tooling switches, and multiple cutting passes. Hurdles such as the necessity for molds, which takes weeks to months to design and manufacture, are often confounding trade-offs for do-it-yourself people of all subcultures, and injection molding, which requires them, is for the most part for mass production.

Alternatively, a prototype can be created using 3D printing in a quarter time. After preparing its digital copy, the printer, then can create the object, in just a few hours or days depending on the size and complexity. This is particularly used for projects that require quick iteration and feedback.

Cost-Effectiveness:

Cost is a key consideration when selecting a prototyping method. Prototyping can be costly - particularly for low-volume production. The tooling, molds and labor costs can really stack up. For instance, molding an injection mold can be expensive, often costing thousands of dollars.

On the other hand, 3D printing is typically more cost-effective, particularly for small runs or individual prototypes. Of course, because 3D printing does not require specific tooling or molds, it is frequently a more cost-effective solution for prototyping early on. The major expenses are only incurred by the 3D printer, materials, and operations, making 3D printing a cost effective option for many companies.

Material Selection:

The right material can make or break a prototype, as it defines its functionality, durability and even its aesthetic quality. Traditional prototyping provides a broader range of materials, such as metals, plastics, and composite materials. For example, CNC machining can process many materials such as aluminum, stainless steel, and titanium, making it great for functional prototypes that need to be high strength. Injection molding also allows for a range of more complex, mass produced prototypes by using different types of plastic materials.

Keep it in perspective, though; 3D Printing has come a long way in the material innovation space over the years. Once limited to plastics such as PLA and ABS, modern 3D printers can process metals, ceramics and even composite materials. Though the materials currently available for 3D printing are still more limited than traditional methods, this area of the industry is evolving quickly, and 3D-printed prototypes can often play the role of functional test models before moving into more durable materials.

Precision and Quality:

Traditional prototyping methods are generally preferred over precision. CNC Machining & Injection Molding CNC machining and Injection molding are very high precision processes that can create parts with extremely tight tolerances. These traditional methods have been optimized over decades and can produce prototypes that match the full production part in terms of overall dimensions, finish, and form/fit/function.

We have had great advancements on the precision of 3D printers, but yet it can never really get as fine as you can get through traditional methods. The result in 3D prints is a layer upon layer effect, creating visible layer lines, which is not always acceptable aesthetically. Moreover, while high-end 3D printers can achieve decent precision, there is significant variability based on printer, material and printing process used.

Complexity of Design:

The ability to produce very complex and intricate designs is one of the biggest advantages 3D printing has over traditional prototyping. Complex 3D shapes are easy to manufacture on a 3D printer, which would be extremely difficult, or impossible, through conventional means. Uses For example, internal structures, complex curves or organic shapes can be printed with no need for additional tools or molds.

In contrast, traditional prototyping usually does not allow such complex shapes to be formed without difficulty. In other words, technologies like CNC machining may require special tooling or multi-step processes to reach the same scope of complexity. Mold design can also constrain injection molding, and while some geometries may be simply complex, some may otherwise be considered impossible due to part features like undercuts.

Scalability and Volume Production:

Though 3D printing is ideal for producing single or small-run prototypes, it is not as effective for mass-producing items. This is a slower and less efficient process when creating hundreds or thousands of units. On the other hand, traditional prototyping types (such as injection molding and CNC machining) are used in high volume production, where large quantities of parts need to be produced in a short period of time.

But with some methods (injection molding, for example), you can create vast quantities of the same part very quickly, so these are the preferred processes for mass production after prototyping has established the best design. CNC machining also offers extreme efficiency for long production runs, specifically from solid metal or composite materials.

Which approach is best for your project?

Whether to opt for 3D printing or traditional prototyping depends upon the specific requirements of your project. For high-volume or high-quality, complex production with low turnaround costs, 3D printing is often going to be the best option. It is the perfect tool for prototyping, product testing, and design iteration.

That said, traditional prototyping methods – CNC machining, injection molding – may be better suited to your project if it requires very high precision, a wide range of material options, or large-scale production. These methods are able to deal with larger volumes and deliver functional prototypes similar to the real product.

In many cases, a hybrid approach will be the best solution for your project. Use 3D printing for rapid prototyping and design iteration, then shift to traditional methods for the more refined prototypes and production models.

Conclusion

Both 3D printing and prototyping have their roles in the development of a product. For early-stage prototyping, use 3D printing for speed, flexibility, and cost savings, while traditional methods can deliver precision and material variety for higher-performance, higher-volume applications. By considering your project needs—including speed, cost, materials, and volume—you can select the best prototyping method to help your product vision become a reality.
