Mastering Precision: The Ultimate Guide to Laser Cutting Sheet Metal

Laser cutting of sheet metal has transformed the way the industries approach it without ever equating with this amount of accuracy, swiftness, and speed. As an engineer, a designer, or perhaps an avid hobbyist, one would desire to know all there is about laser cutting technology that is that different from the competition in this high-velocity world of modern manufacturing. Therefore, everything regarding laser cutting sheet metal from basic concepts to applications, and to some degree the future outlook shall be tackled.

What is laser cutting?

This is the process wherein laser cutting cuts, burns, or even vaporizes a material by using a focused laser beam. This is more accurate since it cuts through the thin metal with awesome detail and with the minimum distortion in metals to be cut. It can therefore be applied in a wide array of industries that range from the automotive and aerospace to the electronics industries and even custom fabrication.

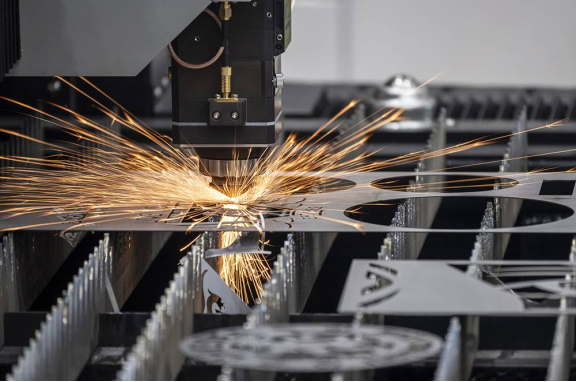

How does Laser Cutting work?

Laser cutting can be described in simple terms using the following important features:

· Laser Source: A laser is furnished through an emitting source from a laser, generally either CO2 or fiber laser.

· Optics and Lenses: Mirrors and lenses create laser light on the material. This process increases the intensity level this way.

· CNC Control System: CNC is the computer numerically controlled system that cuts up the material by controlling the laser to cut through the design file utilized for the selected cut.

· Support Gas: The gas which might be oxygen or nitrogen, is used to blow away the molten metal in the cutting to give clean edges and allow a faster cutting speed.

The cutting is very sharp; changes in speed, power, and gas determine what happens.

Advantages of Laser Cutting Sheet Metal Over Punching and Shearing

Laser cutting has over punching and shearing, the following benefits:

· Accuracy Precision: The nature of laser cuts is accurate and the tolerance can easily reach as low as 0.1mm, which suits intricate designs nicely.

· Minimum Waste Material: A clean cut with minimum waste material will be given by the laser beam.

· Faster Speed: Laser cutting is much faster than most other cutting techniques; hence the fast turnaround time.

· Flexibility: It can cut through stainless steel, aluminum, copper, plastic, and even wood.

· No Tool Wear: Laser does not wear out like in mechanical cutting; hence, less maintenance cost.

Applications of Laser Cutting Sheet Metal

Laser cutting is heavily used in several industries, which are discussed below due to their accuracy and flexibility:

· Automobile: The chassis parts, brackets, and exhaust pipes are laser cut.

· Aerospace: The use of laser cutting in the production of aircraft is in the making of structural parts, engine components, and even heat shields.

· Electronics: Thin sheets of metal are also used in manufacturing parts like heatsinks, enclosures, and connectors.

· Signage and Custom Fabrication: Laser cutting is used for detailed signage and custom metal artwork.

· Medical Devices: There is a requirement for precision-cut metal parts in medical devices and laser cutting ensures accuracy and repeatability.

Selecting the Correct Laser Cutting System

Some of the reasons when choosing a laser cutting machine include:

· The thickness of the material is pretty important since there are lasers cut for thicker materials and lasers that work pretty well on thin sheet materials.

· High-power lasers are faster but need much more complicated cooling systems.

· Cost Effectiveness: The fiber lasers have power efficiency but are costly to the system and should be matched to possible cost savings later.

· Cut Quality: The cuts need to be sharp and of the highest quality. It also includes how the machine would work on a complicated design and how it would be able to cut with minimal burrs and deformation of the material.

Factors Influencing Laser-Cutting Machines

Quality and the efficiency of this laser cutting machine may sometimes depend on other factors like

· Laser Power: That has a cut that is speedier. Where very high amounts result in higher cut quality in generating excessive amounts of heat from their production which translates to less excellent cut quality.

· Cutting Speed: Often cuts of much low-speed quality prove the best because excessively low rates for speed may induce the eneration of massive excess heat during operation and lead to distortion.

· Gas Type and Pressure: This relates more to the cuts in stainless and aluminum. Oxygen nitrogen or pure air is used while obtaining the desired cuts. Increased pressure at certain places and the reduction of it ensures good cuts.

· Material Type and Thickness: Most types of material, with respective thicknesses that correspond to this material and requisite laser parameters that ensure the intended cutting, were established.

Laser Cutting vs. Traditional Cutting Methods

Laser cutting offers many advantages compared to other traditional cutting methods but is limited to a couple of aspects. For instance, comparing it to plasma cut, water jet cuts, or even mechanical cuts.

· Plasma Cut: Plasma cut works quite well with high-thick material, though that comes with finishing in a particular edginess kind, unlike laser cuts whose edges come smoother and sharper.

· Waterjet Cutting: Waterjets can cut any material without generating heat, thus preventing warping. They are slower than laser cutters and often lower in precision.

Conclusion

Laser-cutting sheet metal is one of the most integral parts of manufacturing today, emphasizing precision, speed, and versatility. Whether you are part of a large industrial production or working on small projects, mastering this laser-cutting technique will take you to new peaks. Understanding its process, benefit, and usage will help one make informed choices about whether and how to put laser cutting to work in a workflow.

FAQs

Can laser cut any type of metal?

Laser cutting is indeed a pretty effective mode for most types of metals, while aluminum and copper have proved to be quite difficult cuts since they also reflect a vast majority of laser beams.

Is Laser Cutting Effective at Cutting Thick Metamaterials?

Yes, while CO2 laser does a nice job cutting at thicknesses through thick materials though with increased thickness of material speed would reduce.

What is the difference between CO2 and fiber lasers?

CO2 is great on thicker materials; however, fiber lasers cut thinner metals and reflective materials such as aluminum much better.

What are ways to minimize heat-affected zones in laser cutting?

The cutting speed, power, and gas pressure can be set at the optimal value to reduce the heat-affected zone and improve the quality cut.
